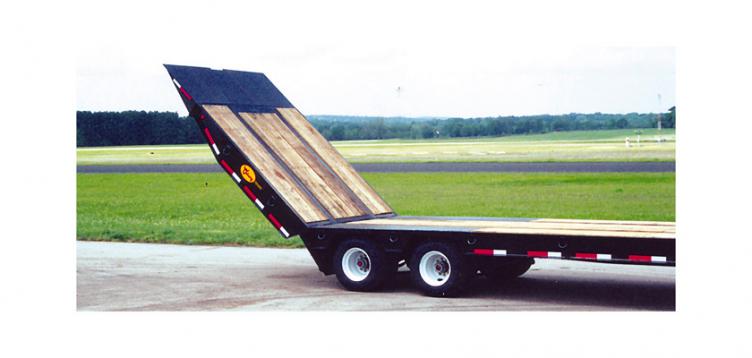

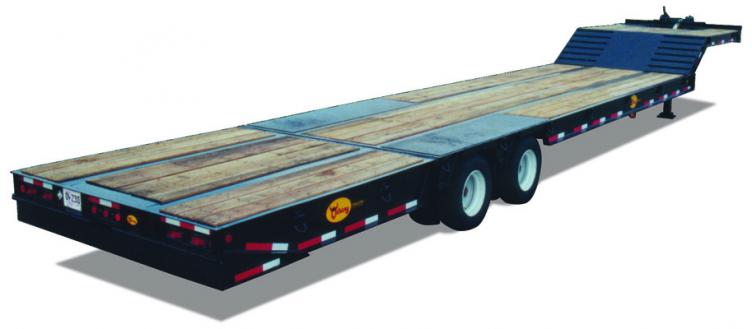

The 35 Ton Hydraulic Beavertail is designed for loading and unloading a variety of heavy equipment. The full width hydraulic apron raises and unfolds and provides a full width loading ramp surface allowing all types of wheel and track machines to be loaded and unloaded safely. Available with a hydraulic winch to assist in loading damaged and non-working equipment. Popular in the equipment rental business, the Viking 35 Ton Beavertail is a must have to get the job done. Capacity: 88,000 lb. GVWR.
Features
Mainframe
16″ Fabricated main beams, 1/2″ x 6″ top flange and 3/4″ x 6″ bottom flange with 1/4″ web welded on both sides. All flange and web material is high strength steel.
Crossmembers
8″ x 6.5# Jr. I-beam on 20″ centers
Kingpin
2″ SAE kingpin, 3/8″ kingpin plate, 84″ swing clearance, 20″ kingpin setting (standard)
Siderails
12″ x 20.7# structural channel, 8″ x 8.5# structural channel on the neck.
Suspension
Hendrickson HT250US air ride suspension with manual dump valve.
Axles
(2) 25,000 lb., 5″ round, 5/8″ wall
Brakes
12-1/4″ x 7-1/2″, Type 30/30 brake chambers, outboard drums, Meritor WABCO (2S/1M) ABS on one axle.
Wheels
6.75 x 17.5 Steel 10 hole disc, stud piloted (color: white)
Tires
235/75R x 17.5 Radials
Landing Gear
2 speed gear with 62,500 lb. lift capacity; 200,000 lb. static load capacity (standard)
Finish
Shot blasted and painted with a high solid polyurethane paint. Colors: black or red (standard)
Floor
2″ Nominal oak (standard), 1/4″ metal covering is standard over tandem areas, 1/4″ metal covering with 1″ traction bars on approach ramp to upper deck.
Lights
7-way main receptacle, sealed wiring harness, rubber mounted LED lights, 3 Lights per side including mid-turn.
Tandem
Set at 164″ from rear of the dovetail.
Dovetail

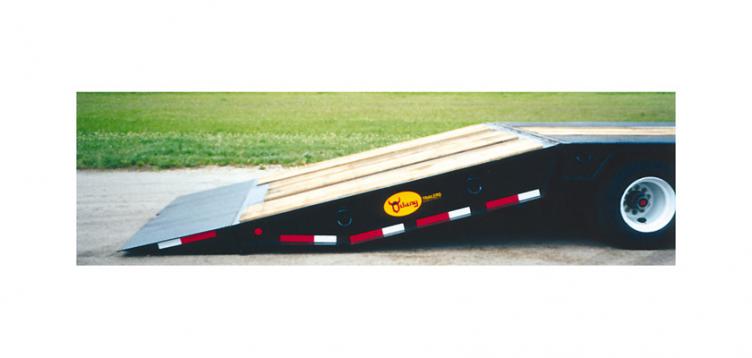

Hydraulic assisted 9 ft. with 3 ft. fold under approx. (12 ft. overall) with approximate 14.5 degree approach angle, covered with 2″ nominal oak.
D-Rings
18 total: (4) 1″ on front deck, (14) 1″ on rear deck.
Options
- 15,000 lb. hydraulic winch with 5/8″ x 100′ cable
- Hydraulic remote valve
- (2) Two remote ports and 12′ remote cable for winch
- Weld on winches
- Fold out outriggers
- Width increase to 9′
- Longer and shorter lengths
- Between the beam tool box
- Epoxy or zinc-rich primer available.
